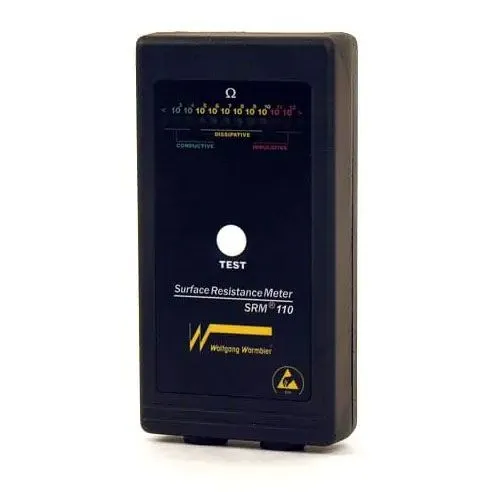

- Quickly and accurately take resistance measurements with the Warmbier SRM110.
- The LED readout will report the resistance in powers of 10 (example 1010)
- Indicates if the surface is Insulative, Conductive or Dissipative.
- Test Range: 103-1012
- Test Voltage: 10V/100V (automatic ranging)
- Accuracy 5%
- Built-in resistivity probes
- Carrying case & calibration certificate included
- Can be used with the Part Number 410 Mini-Probe to take measurements on small areas
Quickly and accurately take ESD resistance measurements with the Warmbier SRM110. The LED readout will report the resistance in powers of 10 (example 1010) and indicate if the surface is Insulative, Conductive or Dissipative. This Wolfgang Warmbier SRM110 uses builtin parallel electrodes to accurately measure RTT, RTG, or resistivity for periodic verification, factory audits or test lab evaluation of the product. This meter is designed to verify incoming materials such as floor mats, table mats, bins and shelving in static controlled areas. Work surfaces, bags, wrist straps, footwear, packaging materials, garments, and ESD chairs can also be tested with the device.
The SRM110 meets periodic test requirements per Compliance Verification ESD TR53 and conforms to ANSI/EOS/ESD (S4.1, S7.1, S12.1, S2.1).
Features Include
- Test Range: 103 - 1012
- Test voltage: 10V/100V (automatic ranging)
- Accuracy: 5%
- Built-in resistivity probes
- Carrying case & Calibration Certificate Included
- Can be used with the 410 Mini-Probe to take measurements on small areas (sold separately)
